| Tip procesora: | Intel |
| Podnožje: | Intel® 1151 (8. i 9. gen.) |
| Čipset: | Intel® H310 |
| Format ploče: | Micro ATX |
| Podržana memorija: | DDR4 |
| Bluetooth: | Ne |
| Podržani procesori: | – Osma i deveta generacija Intel Core procesora (podnožje 1151) – Maksimalna potrošnja procesora do 95W – Četvorofazni dizajn modula za regulaciju napona |
| Memorija: | – Dual Channel DDR4 Memory tehnologija – 2 x DDR4 DIMM slota – Podržava DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memoriju – Maksimalan kapacitet sistemske memorije: 32GB – Podržava Intel® Extreme Memory Profile (XMP) 2.0 – 15μ zlatni kontakti u DIMM slotovima |
| Multi-GPU podrška: | – |
| Integrisana grafička karta: | – Podržava Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video sa AVC, MVC (S3D) i MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics – DirectX 12 – HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 – Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers – Podržava DVI-D with max. resolucije do 1920×1200 @ 60Hz – Podržava D-Sub with max. resolucije do 1920×1200 @ 60Hz – Podržava HDCP 2.2 sa DVI-D Port |
| Slotovi za proširenje: | – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) – 1 x PCI Express 2.0 x1 Slot |
| Skladište: | – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Mrežna karta: | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – 1 x Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Zvučna karta: | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection – ELNA Audio Caps |
| USB: | – USB 2.0 – USB 3.1 |

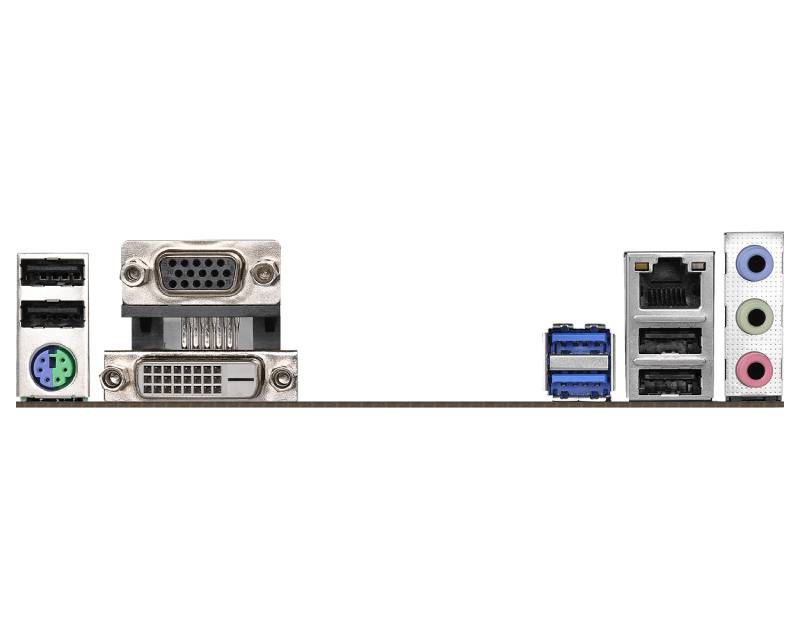

| Konektori na zadnjoj strani: | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Interni konektori: | – 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| BIOS: | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – DRAM, PCH 1.05V Voltage Multi-adjustment |
| Ostalo: | – Temperature Sensing: CPU, Chassis/Water Pump Fans – Fan Tachometer: CPU, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
Matične ploče, Računari, monitori, konzole, Računarske komponente

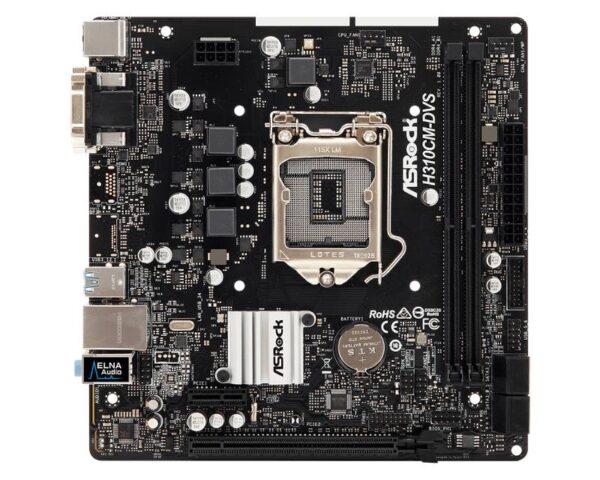

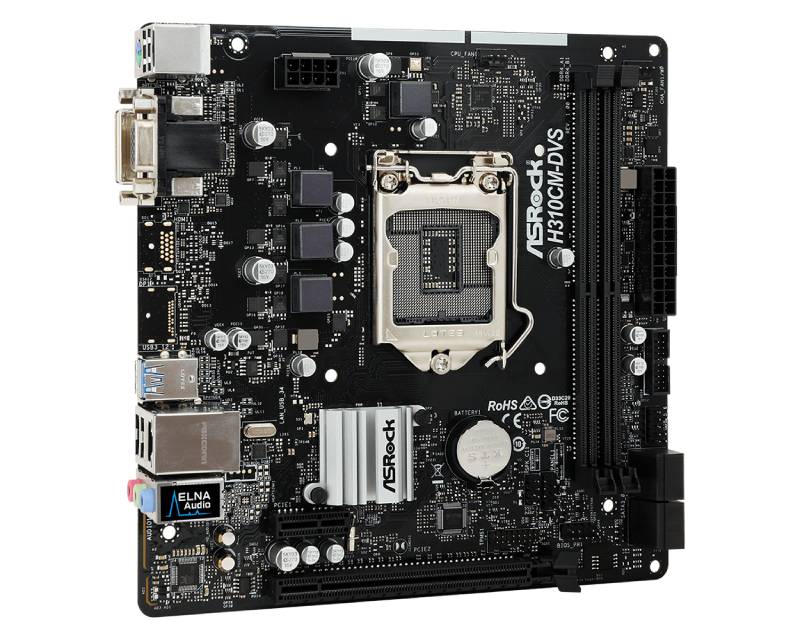

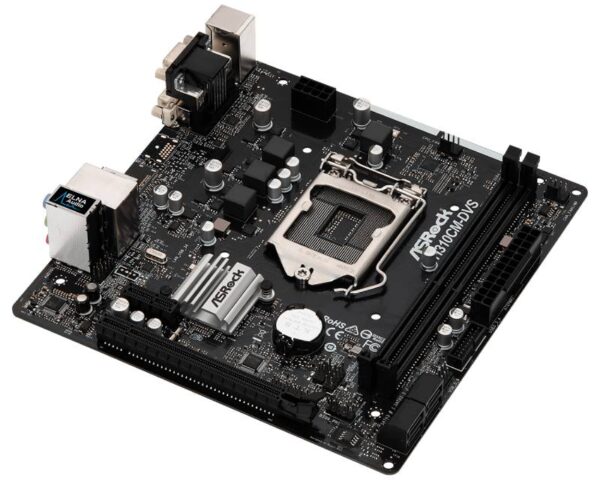

ASROCK H310CM-DVS matična ploča
Dostupnost:
Nema na stanju
Brand: ASRock
6.915 rsd
Nema na stanju
| Model | ASROCK H310CM-DVS matična ploča |
| Naziv i vrsta robe | Matične ploče |
| Uvoznik i zemja porekla | Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji proizvoda. |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
